A realistic buying budget depends on more than the lift’s advertised capacity: freight, erection, hydraulic equipment, civil work, electrical supply, GST, and safety accessories can materially change the installed cost. By the end, you can match the platform to your vehicle fleet, check whether your bay and floor are suitable, compare alternatives, and request a quotation that exposes every charge.
Key takeaways
- Budget ₹1.5 lakh–₹4 lakh before GST and installation for many passenger-vehicle platforms.
- Choose capacity, platform length, and lift design from your heaviest vehicle and wheelbase.
- Measure bay length, width, floor strength, and ceiling clearance before ordering.
- Accept the lift only after testing hydraulic safety, controls, lowering, and emergency stops.
What should you budget for a car-wash lift in Coimbatore?
Budget ₹1.5 lakh–₹4 lakh before GST and installation for many passenger-vehicle tyre-rest platforms. A larger four-post, long-platform, higher-capacity, or customised unit can exceed that range. If you are checking tyre rest platform car wash for lift price in Coimbatore, treat this as an indicative buying band, not a confirmed local quotation.
Ask every supplier to price these items separately:
- Lift structure
- Hydraulic power pack
- Ramps
- Wheel chocks
- Mechanical safety locks
- Anchor fasteners
- Delivery
- Unloading
- Erection
- Electrical cabling
- Commissioning
- GST
- Civil work
A bare-equipment quote cannot be compared with an installed quote: the cheaper figure may exclude freight, unloading, anchoring, wiring, testing, and slab modifications. Civil work can also add cost if the floor needs a pit, repair, levelling, drainage changes, or stronger foundations.
For car wash lift price in Coimbatore, ask the supplier to show the HSN and GST treatment on the tax invoice. Vehicle-lifting equipment is commonly placed in the lifting-machinery tariff area, but do not assume the classification or tax rate from a brochure or headline price. Compare the final installed, commissioned amount.
Which lift design and capacity fit your vehicles?
A tyre rest platform in Coimbatore is the right choice when tyres remain on runways or a solid platform during underbody washing, wheel-arch cleaning, and drive-on/drive-off work. The wheels stay supported, so tyre removal, brake work, and suspension repairs need a wheel-free lift or separate equipment.
| Design | Stability and bay length | Underbody and wheel access | Wash-bay obstruction |
|---|---|---|---|
| Four-post platform | High stability; needs the longest bay | Good underbody reach, limited wheel access | Runways remain below the vehicle |
| Two-post lift | Less longitudinal stability; shorter bay | Excellent wheel and underbody access | Small footprint, but positioning is less forgiving |

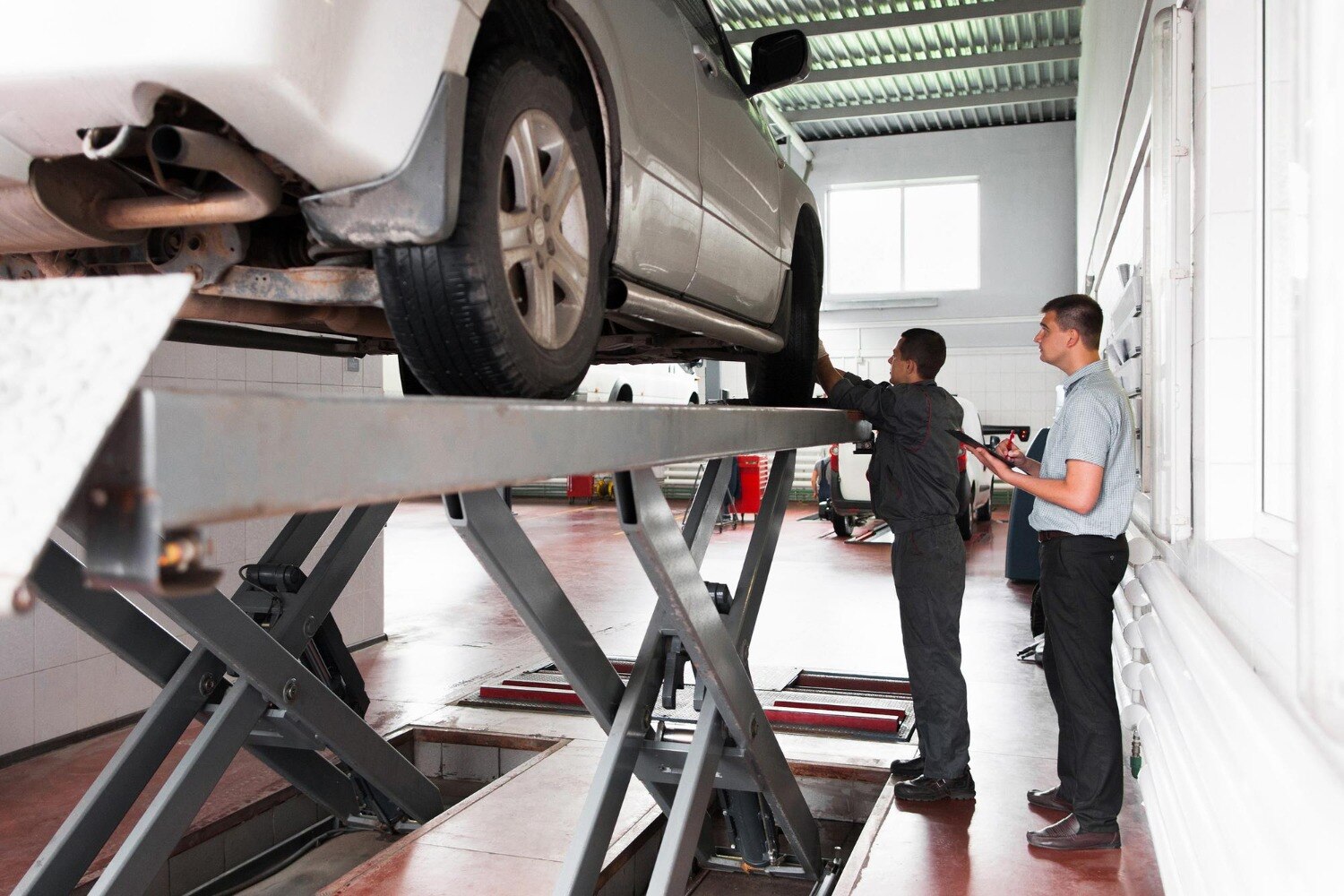

| Scissor platform | Stable; often uses less bay length | Platform and cross-members obstruct some underside areas | Cleaner layout, with central structure in the wash zone |
| Fixed washing ramp | Stable but no lifting travel | Poor underside access; wheels remain supported | Simple, but drainage and spray clearance can suffer |
For a car wash lift for garages, size from the vehicle’s loaded operating weight, not its empty kerb weight. Include passengers, fuel, tools, water, accessories, roof equipment, and mud; allow for uneven loading, then check both axle limits and runway limits.
Ask the supplier to state these figures in writing:
- Safe working load and load-distribution assumptions
- Platform length, width, maximum wheelbase, and track-width range
- Minimum lowered height and lift-cycle time
A “4-tonne” or “8-tonne” label alone cannot prove that a long-wheelbase SUV fits safely.
Can your wash bay, floor, and ceiling accept the platform?
A 1,500 mm maximum lift height does not mean you need only 1,500 mm of ceiling clearance. Add the vehicle’s height at full lift, plus working space for an underbody lance, wheel-arch access, drainage, operator movement, and washing lower doors and sills.
1. Measure the bay before paying a deposit. Check roof, beams, lights, doors, and overhead pipes against the raised vehicle height. Mark the platform length and width, ramp approach angle, vehicle turning path, open space around the raised vehicle, and unloading route.
2. Ask the tyre rest platform supplier to inspect the slab and record its thickness, concrete grade, measured flatness tolerance, anchor type, minimum edge clearances, and any pit or recess requirement. A visibly flat garage floor does not prove it can hold anchors or survive repeated wet-dry cycles with water, mud, and detergent.
3. Confirm floor drainage before installation. Locate floor drains, measure the slope, preserve access to any oil tank, and specify hose routing and water-spray protection for hydraulic and electrical parts. A standing-water pocket beneath the platform accelerates corrosion and complicates cleaning.
4. Require a drawing for the car wash lift for garages showing the lowered and raised positions, platform length, clearance around wheels and sills, and unloading method. If the slab, ceiling, turning space, drainage, or access fails inspection, choose civil modification or another lift design before ordering.
What power, hydraulic safety, and operating routine are required?
A car wash lift for garages needs a matched hydraulic power pack, not simply a motor and pump. Treat 9–12 kg/cm² and 14–16 kg/cm² as specified design figures: confirm which pressure applies to normal operation and which applies to the relief setting, then match the pump, reservoir, valves, hoses, cylinder, and power-pack rating accordingly.
Confirm the electrical and hydraulic installation before service:
- Check the motor rating, phase, voltage, full-load current, isolator, earthing, cable size, and the electrical supply available at the site.
- Do not substitute an air compressor for a hydraulic power pack unless the lift design explicitly requires pneumatic equipment.
- Complete hydraulic pressure testing at the specified working and relief pressures, then inspect every hose, fitting, cylinder seal, and connection for damage or leakage.
- Inspect the platform, runways, wheel restraints, and mechanical locks before each use.
- Drive centrally onto the runways, stop at the marked position, apply the handbrake, select park or neutral as specified, and place wheel chocks or restraints.
- Clear people and loose tools, then raise slowly while checking platform level and lock engagement; stop at the lowest safe working height.
- Wash only after the vehicle is stable. Before lowering, clear people, release the locks deliberately, and lower under control.
- After lowering, check for hydraulic leaks, platform tilt, damaged hoses, and vehicle movement.
These checks matter more than a low car wash lift price in coimbatore, because an incomplete power, safety, or commissioning specification creates the real cost.
How should you vet a supplier and accept the installed lift?
Reject any quote that cannot show the lift’s engineering assumptions in writing. Ask the tyre rest platform supplier for:
- Load-distribution assumptions, dimensional drawing, foundation plan, and anchor details
- Hydraulic circuit, cylinder, pump, reservoir, hose, motor rating, voltage, and current data
- Mechanical safety-lock arrangement, emergency stop, and controlled failure-lowering method
- Maintenance schedule, warranty terms, spare-parts access, and corrosion-protection details
A 3.5-tonne label proves little without axle limits, platform dimensions, and foundation requirements.
| Document | Acceptable evidence | Reject if |
|---|---|---|
| Load capacity | Safe working load and axle/runway limits | Only a capacity sticker |
| Installation | Slab, anchors, drainage, and electrical plan | Installer leaves site conditions to guesswork |
| Safety | Progressive locks and deliberate release procedure | Hydraulics alone hold the vehicle |
For acceptance, use a representative loaded vehicle. Check that ramps and wheel chocks prevent movement, then raise through full travel while confirming progressive mechanical-lock engagement. Measure platform levelness at height.
Prove that lowering remains blocked while locks are engaged, hold the load to check hydraulic leakage, and wash the vehicle before inspecting drainage, hose protection, electrical enclosures, earthing, and residual water.
A Coimbatore buyer can assess GMS Car Wash Equipments against this same checklist. Do not judge a tyre rest platform car wash for lift price in Coimbatore from the headline figure; compare installed cost, service response, wash-bay suitability, and verifiable safety performance when choosing a tyre rest platform in Coimbatore.
Related products

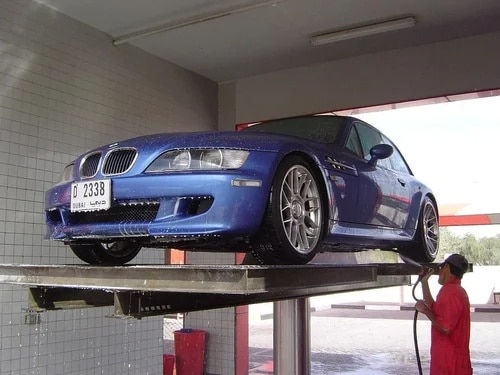

 | Garage Equipments Tyre Rest Platform And Car Wash Lift | GMS Engineering We are the reliable Manufacturer of the Garage Equipment Capacity 4 Tonne / 8 Tonne Max Lifting Height 1500 mm Operating Pressure... View product → |

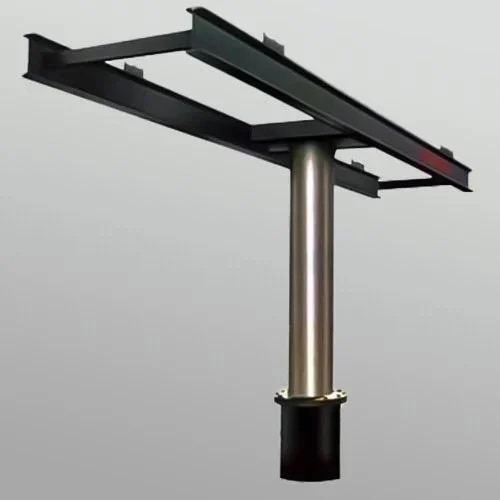

 | Hydraulic Washing Lift GMS Engineering Providing you the best range of hydraulic washing lift, hydraulic washing lift in kovilpatti, trp 4 ton scissor car wash lift,... View product → |
Frequently asked questions
What should you budget for a car-wash lift in Coimbatore?
Budget ₹1.5 lakh–₹4 lakh before GST and installation for many passenger-vehicle tyre-rest platforms. Four-post, longer, higher-capacity, or customised lifts can cost more, so request a written quotation.
Which lift design and capacity fit your vehicles?
Match the lift to your heaviest vehicle, wheelbase, tyre position, and required working height. Compare two-post, four-post, and tyre-rest designs against the vehicles you will actually wash.
What must you check before installing a tyre rest platform?
Measure the wash-bay length and width, platform travel, ceiling height, vehicle approach space, drainage, and floor condition. Ask the supplier to confirm the required concrete and anchoring specifications in writing.
What power and safety checks are required?
Confirm the electrical supply, motor and hydraulic specifications, load rating, locking system, hose condition, control operation, lowering procedure, and emergency-stop function before regular use.
How should you accept an installed car-wash lift?
Inspect the delivered model and capacity, record the serial number, test it with the intended vehicle, check smooth lifting and lowering, verify mechanical locks, and obtain operating and maintenance instructions.
